Filtry ssawne / Kosze ssawne - Filtr typu RS

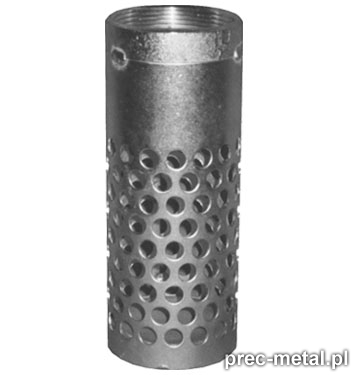

Filtr typu RS
Gwint BSPT
|
Indeks |
Rozmiar gwintu [cal] | Średnica zewnątrzna | Wysokość | ||
| [cal] | [mm] | [cal] | [mm] | ||
| PMRS20A | 1.1/2 | 2.2/10 | 56 | 6.5/10 | 165 |
| PMRS25A | 2 | 2.6/10 | 66 | 6.5/10 | 165 |
| PMRS30A | 2.1/2 | 3.1/10 | 80 | 9.6/10 | 245 |
| PMRS35A | 3 | 3.8/10 | 97 | 9.6/10 | 245 |
| PMRS40A | 4 | 4.9/10 | 124 | 9.6/10 | 245 |
| PMRS60A | 6 | 7.1/10 | 180 | 12.4/10 | 315 |
Gwint NPT
|
Indeks |
Rozmiar gwintu [cal] | Średnica zewnątrzna | Wysokość | ||
| [cal] | [mm] | [cal] | [mm] | ||
| PMRS20B | 1.1/2 | 2.2/10 | 56 | 6.5/10 | 165 |
| PMRS25B | 2 | 2.6/10 | 66 | 6.5/10 | 165 |
| PMRS30B | 2.1/2 | 3.1/10 | 80 | 9.6/10 | 245 |
| PMRS35B | 3 | 3.8/10 | 97 | 9.6/10 | 245 |
| PMRS40B | 4 | 4.9/10 | 124 | 9.6/10 | 245 |
| PMRS60B | 6 | 7.1/10 | 180 | 12.4/10 | 315 |
| PMRS80B | 8 | 9.2/10 | 233 | 14.6/10 | 370 |
Filtry ssawne (pdf)
